KJG-220

بسته بندی و قطر سيم : بسته بندی به صورت قرقره پلاستيکی رديف پيچ و يا ساير بسته بندی ها با سفارش مشتری، طبق جدول زير .

وزن و بسته بندی

قطر سيم (mm)

قرقره 15 کيلويی

0.80 – 1.0 – 1.20 – 1.60

کلاف 25 کيلويي و هاسپل 350 تا 450 کيلويی

3.20 – 4.0

Description

Solid Wire For Gas Shielded Arc Welding



Weld Metal Mechanical Properties:


Wire + Shielded Gas

U.T.S.

(Mpa)

Y.S.

(Mpa)

El

%

Charpy Impact ISO – V (J)
R.T. -30°C
KJG – 220 + 100 %CO2 520 – 550 415 – 435 24 – 26 65 – 80 45 – 55



Weld Metal Mechanical Properties:

Wire + Shielded Gas

U.T.S.

(Mpa)

Y.S.

(Mpa)

El

%

Charpy Impact ISO – V (J)
R.T. -30°C
KJG – 220 + 100 %CO2 520 – 550 415 – 435 24 – 26 65 – 80 45 – 55



Packing and Diameter:

In layer winding plastic spool or at buyer’s option according to below table



Packing Wire Dia(mm )

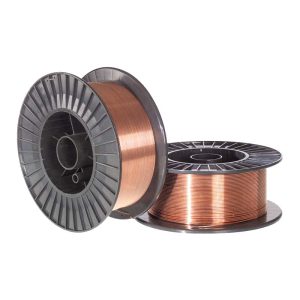

Spool ( 15 Kg ) 0.80 – 1.0 – 1.20 – 1.60
Coil/Drum (25 or 350 to 450 Kg) 3.20 – 4.0



Descriptions:

KJG-220 is GMAW cupper coated wire emitting homogenous weld bead suitable for welding metallic structures, shipbuilding, tanks and vehicle assembly line with no spatter due to the stable arc.

KJG-220 is approved by GL, BV and DNV classification institutes. Shield Gas: Ar + 20% Co2 or 100% Co2

Welding Current: DCEP

Welding positions: Flat, Horizontal, Filet, Upward, Downward, Overhead KJG-220 is almost equivalent to the followings:

Lincoln Electric Supra – MIG ESAB Autrod 12.51

Additional information

بسته بندی و قطر سيم

بسته بندی به صورت قرقره پلاستيکی رديف پيچ و يا ساير بسته بندی ها با سفارش مشتری
